IN-BIO06-AIF is Widely Used: Passenger Turnstile,
Government Institution,
Office, Building,
Apartment
,Community,
College.
And Various Enterprise,etc.
Product name

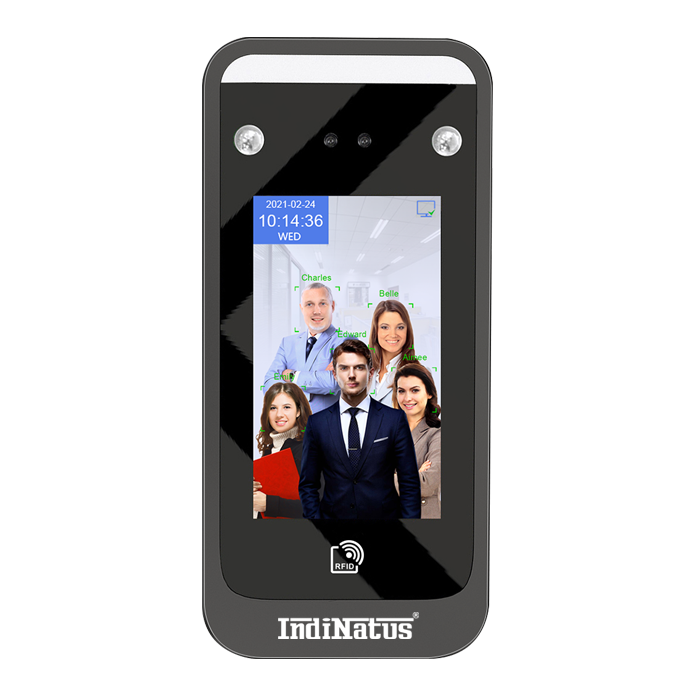

AI Dynamic Face Recognition Time Attendance Access Control Terminl
Screen
4.3 Inch, HD 272x480, Capacitive touch screen
Keypad
Touch Keypad
Operation system
LINUX 3.10
CPU, NPU
1.2G Dual-Core RAM Cortex-A7, 600G (0.6T)
RAM
256MB DDR3
ROM
eMMC Flash 4GB
Binocuar camera
200W Colorful WDR+200W Infrared Live camera
Logs capacity
500000
Face Registration
Local operation: Enroll face with machine, import user photo with U dist Software operation: Import user photo to software, capture user photo with camera
Verication
Dynamic face recognition, password, ID/IC card optinal
Face capacity
5000 (50000 optional)
Card capacity
5000 (50000 optional), ID Card Standard, IC Card Optional
Password Capacity
5000 (50000 optional)
Face Recognition Accuracy
0.997
Recognition Speed
<0.2s, support single user/multi user (at most 5 user) recognition at same time
Recognition distance
0.5-2.5 meters (0.5-1.5 meters with live face recognition On)
Prevent Photo
Doual camera anti-counterfeiting, prevent recognition with photo/video
Principle of Identication
Face algorithm technology of multi-tast cascaded convolutional neural network based on video stream for dynamic face detection, tracking and recognition
WDR
Wide dynamic range, support accurate face recognition under Strong Light, dark light and backlight
USB
USB2.0x1, Support C/S LAN communication, wife (optinal)
Power supply
DC 12V interface x1
Speaker Interface
Reserved for extended Speaker Interface
Network Communication
TCP/IP, Support C/S LAN communication Wi (Optional)
Free attendance software
Support exporting excel attendance report with U disk
Shift
Support shift setting and importing shift schedule with U disk
Management Software
Support PC software to manage data through network connection with equipment
Access Control Function
Door unclosed alarm, forced door opening alarm, alarm Linkage and output, one set of door opening signals, one set of alarm signala, time permission control, connect external access control reader wiegand 26/34 output input
Environmental adatability
Working temperature: -15°C ~ +45°C (storage temperature -40°C ~ + 65°C), Work humidity: 20% ~90% (storage humidity 20% ~90-+20%), Dark enviroment: LED Soft light automatic ll light ( Automatic control according to ambient light), Ambient light adaptation range: 0-50000Lux
language
English
Broadcase and ring
Support display name, voice broadcase name, builting bell ring
Automatic ll light
Support infrared ll light, the white ll light automatically lights up when face is captured in dark light
working current
stand-by current; 310mA, Working current: 520mA
QR Code Scanner
Support
Working Voltage
DC 12V
Installation way
Standard wall mount, desktop stand; optional; bracket for turnstile, oor stand
