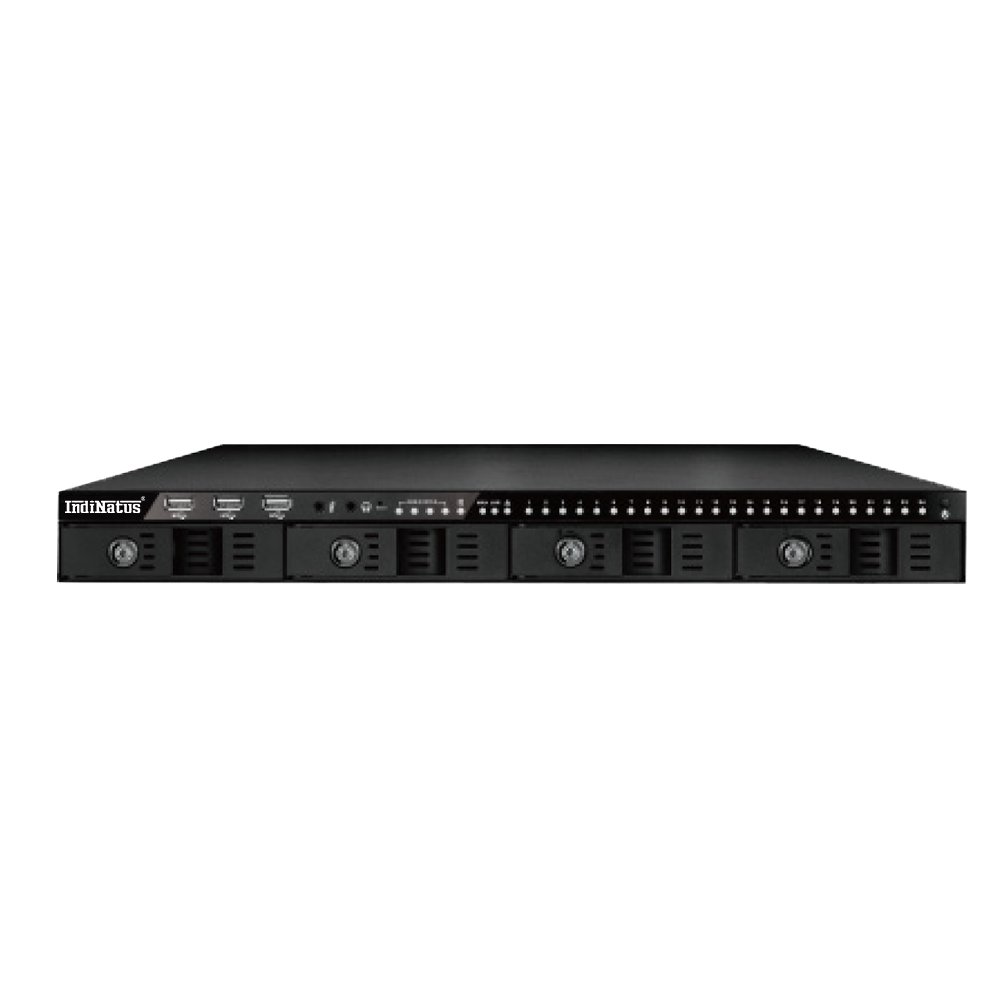

X86 Based H.265 Network Recorder

• H.264/H.265 recording and playback
• 3MP/5MP/4K IP camera support
• Support 4K2K/1080P local display output
• Per channel recording configuration

Category: Bright ( NVR )

• H.264/H.265 recording and playback
• 3MP/5MP/4K IP camera support
• Support 4K2K/1080P local display output
• Per channel recording configuration

System
CPU	intel i3/i5/i7
RAM (2*Slot)	4 x 1GB, DDR4 (max 2 x 8 GB)
Boot Drive	eMMC Flash, 16GB
Graphics	Intel HD Graphics 500
DISPLAY PORT Output	Up to 4096x2160 @60Hz
HDMI Output	Up to 3840x2160 @30Hz or 2560x1600 @60Hz (HDMI 1.4b)
Audio Input	3.5 mm*1 TRS phone jack
Audio Output	3.5 mm*1 TRS phone jack
USB Port	USB 2.03 ; USB 3.02 (1 for front, 2 for back)
Recording / Playback
Bandwidth	Bandwidth : 240Mbps
GPU Decoding	24CH real-time display Up to 720 fps@D1 decoding
Storage and I/O
Build-in SATA Interface	3.5” SATA*4 HDD
Build-in RAID	RAID 0 / 1 / 5 / 10 (Optional)
Others Interface	(Optional: RS-4851, RS-2321)
Digital Alram Input/Output	4 * I/P , 4 * O/P
Network
WAN Uplink	RJ-45*1, 10/100/1000 Mbps
LAN Uplink	RJ-45*1, 10/100/1000 Mbps
Built-in PoE	RJ-45 x16 , 10/100 Mbps
PoE Level	IEEE 802.3 af/at x16
General
Unit Dimensions (mm)	429 x 330 x 44
Unit Weight (kg)	6.5 kg
Operation Temperature	-10°C ~ 50°C /
Operation Relative Humidity	0% ~ 95% Non-condensing
Power Supply	100~240Vac , 420W

Date	Title	Print
03-03-2023	X86 Based H.265 Network Recorder
