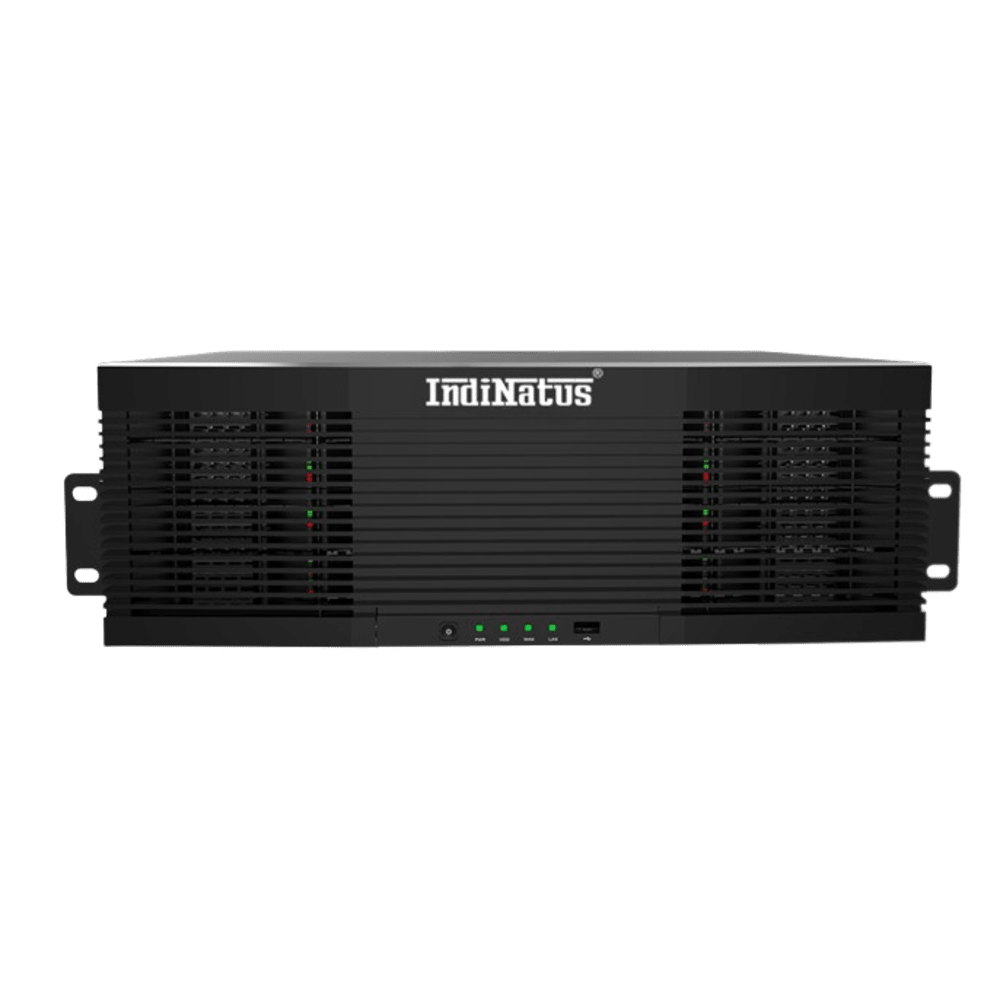

H.265 16HDD 128ch NVR

• H.265+ Compression
• Support 128-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 1024Mbps
• Outgoing Bandwidth 800Mbps

Category: Supreme ( NVR )

• H.265+ Compression
• Support 128-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 1024Mbps
• Outgoing Bandwidth 800Mbps

Input
Video Input	128-ch
Max Resolution	12MP
Bandwidth	Income 1024 Mbps; Outcome 800Mbps
Output
HDMI/VGA Output	HDMI 3（1024768, 1280720, 12801024, 1440900, 19201080 , 25601440, 3840*2160
	VGA:1-（1024768, 1280720, 12801024, 1440900, 1920*1080
Audio Output	1
Decoding
Decoding Format	H.265+/H.265/H.264/M-JPEG
Recording Resolution	12MP/8MP/5MP/3MP/2MP(1080P)/1.3MP(960P)/1.0MP(720P)
Synchronous Playback	Max 16CH playback
Hard Disk
SATA	16 SATA interfaces for 16 HDDs (Hot Swap)
Capacity	upto 18TB (Enterprise-Class)
eSATA Interface	1 SATA interface
Array Type	RAID0, RAID1, RAID5, RAID6, RAID10
External Interface
Network Interface	2×RJ45 self-adaptive 10/100/1000 Mbps network interfaces,
USB Interface	1×USB 2.0, 2×USB 3.0
Serial Interface	1×RS485,
Alarm In/Out	16/4
General
Language	English
Operating Conditions	-10℃～55℃, 0%~95% RH
Power Supply	AC100~240V, 50/60HZ
Consumption (without HDD)	≤80W (without HDD)
Dimensions	440460149mm
