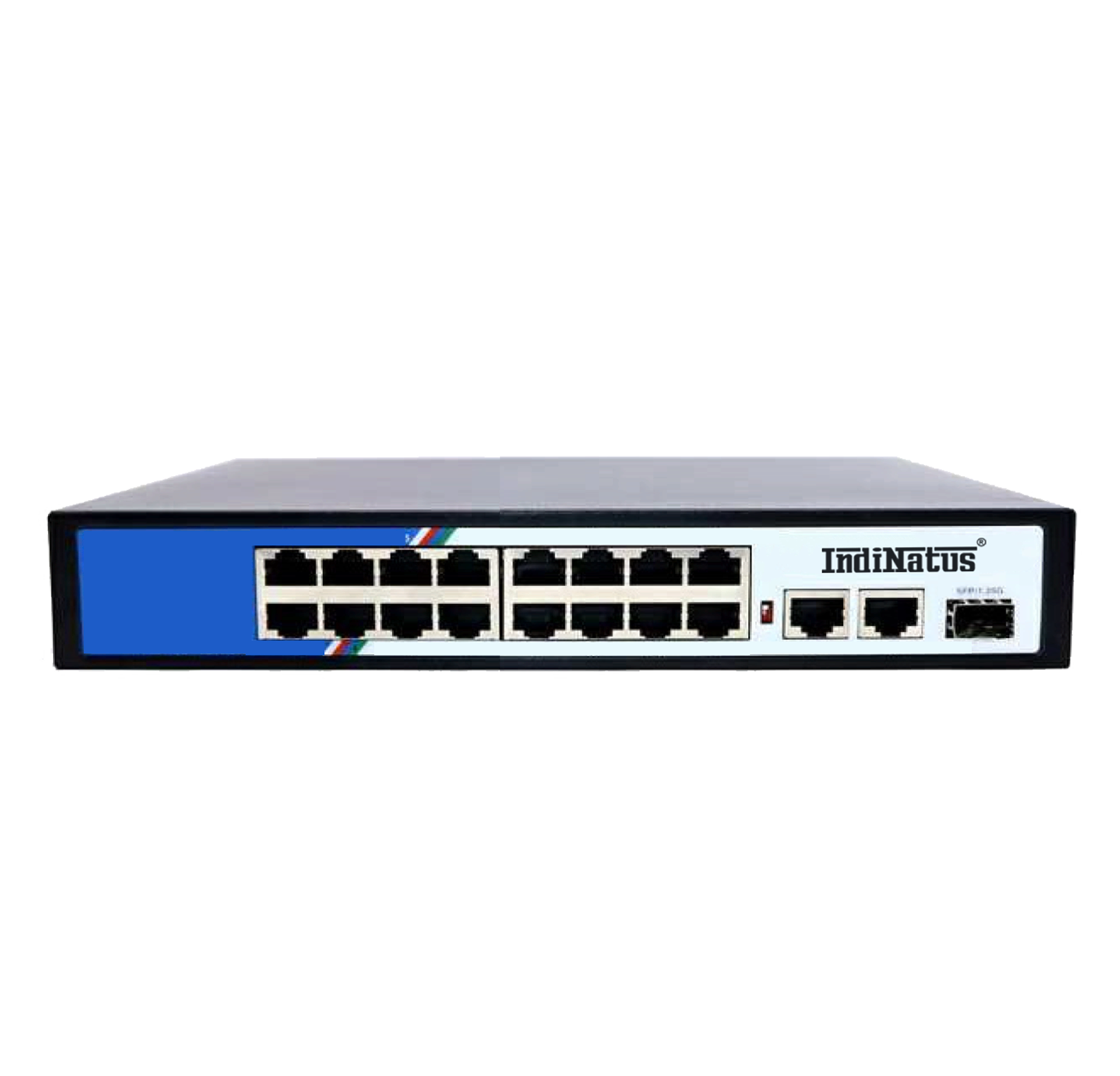

16-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Ethernet Switch

16*10/100/1000Base-T PoE RJ-45 ports
2*10/100/1000 Base-T RJ-45 Ports
2*1000 Base-X SFP ports

Category: PoE Switch ( Transmission )

16*10/100/1000Base-T PoE RJ-45 ports
2*10/100/1000 Base-T RJ-45 Ports
2*1000 Base-X SFP ports

Ethernet Ports
Downlink Ports	16*10/100/1000 Base-T PoE RJ-45 (Auto-MDI/MDI-X)
Uplink Ports	210/100/1000 Base-T RJ-45 21000 Base-X SFP
PoE
PoE Standard	IEEE 802.3af/at (PSE)
PoE Power Supply Type	End-span
PoE Pin Assignment	1/2(+) 3/6(-)
PoE Power Output	53.5V DC
PoE Power	30W max for each port, 175W max
Switch Property
Standards	IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X
Forwarding Modes	Store and Forward
Packet Buffer	4Mbyte
MAC Table	8k, support auto learning
Switching Capacity	40Gbps / non-blocking
Packet Forwarding Rate	29.8Mpps
Power Supply
Input Voltage	100~240VAC 50/60Hz
Power Consumption	200W (Including PoE)
Reliability
Surge Immunity	6kV, Standard: IEC6000-4-5
ESD Protection	6kV Contact Discharge 8kV Air Discharge, standard: IEC61000-4-2
Operating Temperature	-10℃~50℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%~95% (Non-condensation)
Physical Parameter
Led Indicators	1PWR Indicator 16Downlink Port Link Indicators 16Downlink Port PoE Indicators 4Uplink Port Link Indicator
DIP Switch	Default: all ports are free to communicate. VLAN: downlink ports are isolated from each other, but can communicate with uplink ports. Flow control: enable flow control function, this mode is suitable for video surveillance transmission.
Dimensions (WDH)	442mm285mm44mm
Gross Weight	5000g±60g
Net Weight	3800g±40g
Material	Metal shell
Installation	Rack mounted/desktop/wall mounted
