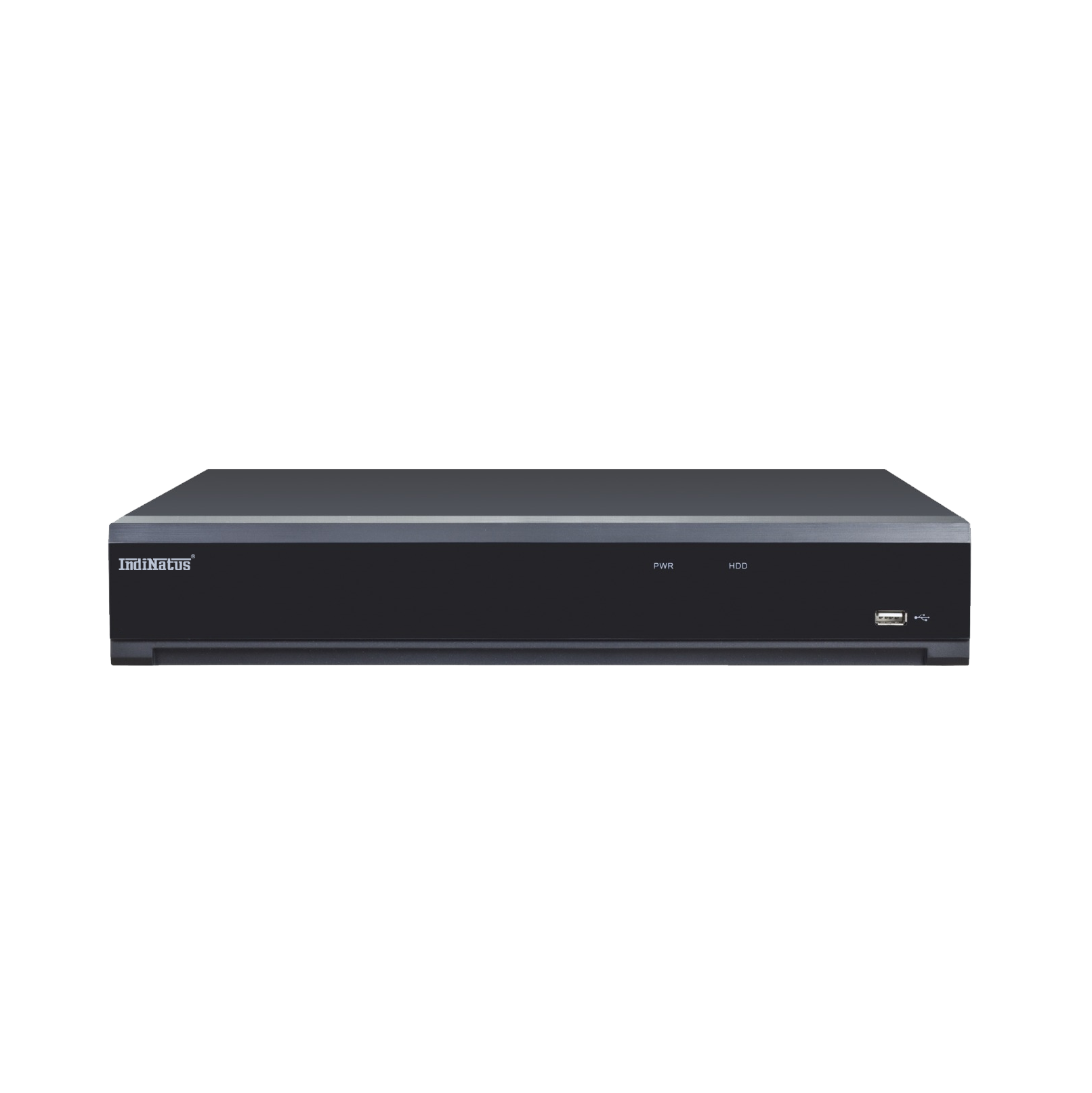

H.265 2HDD 32ch NVR

• H.265+ Compression
• Support 32-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 256Mbps
• Outgoing Bandwidth 256Mbps

Category: Lite ( NVR )

• H.265+ Compression
• Support 32-ch input
• Up to 12MP Resolution Recording
• Incoming Bandwidth 256Mbps
• Outgoing Bandwidth 256Mbps

Input
Video Input	32-ch
Max Resolution	12MP,
Bandwidth	Income 256 Mbps; Outgoing 256 Mbps
Output
VGA	1（1024768, 1280720, 12801024, 1440900, 1920*1080 ）
HDMI 1	1（1024768, 1280720, 12801024, 1440900, 19201080 , 38402160/EDID）
HDMI 2	1（1024768, 1280720, 12801024, 1440900, 1920*1080) Async output
Performance
Decoding Format	H.264/H.264+/H.265/H.265+
Recording Resolution	8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P)
Compression	Audio: G.711A;G.711U
Frame rate	4K:60fps
	4MP:120fps
	2MP:240fps
Event	MD(Sensitivity Level 1~8)
	Videlo loss
	Beep, Email,
Playback function	Fast forward / backward (2x, 4x, 8x,16x)
Playback function	Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback	Max 16CH playback
Fisheye	Support
Interface
Ethernet	2 RJ45 100/1000 Base-T
USB	USB2.01(front) USB3.01+USB2.0*1(rear)
Audio out	1
E-sata	1
HDD	2 SATA, each HDD up to 10TB
Line in	1
RS485	1
Alarm Input/out	16 in /1 out
General
Language	English
Input Voltage/Current	12V/5A
Power consumption (excluding hard disk)	12W
Operating Temperature/Humidity	Temperature : -10°C~+50°C (14°F ~ 122°F)
Operating Temperature/Humidity	Humidity : Less than 90%RH
